TECHNICAL SPECIFICATION
Type | HID Ballast |
Model | C1216 |
Power | 42watts |
V-in | 9-16V |

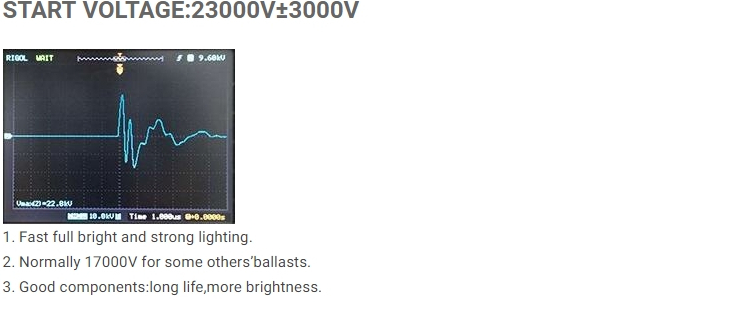

V-start | 23000V±3000V |
V-out | AC 85±17V |
I-start | 5.5A&13.5V/CANBUS+FAST START |
I-op | 4.2A&13.5V |
Efficiency | ≥85% |
Life span | >3000+ hrs |
Size | 70*90*12mm |

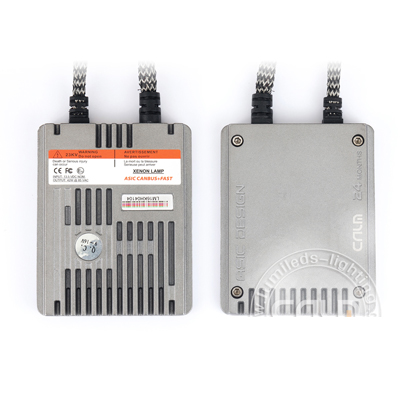

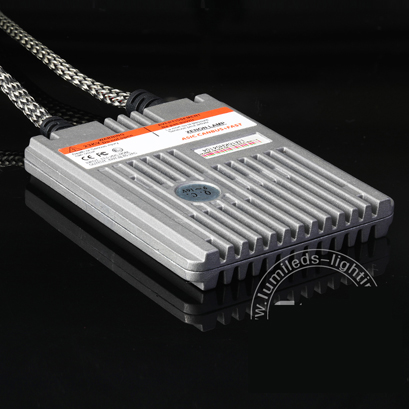

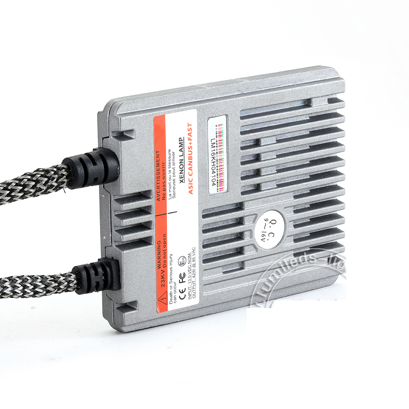

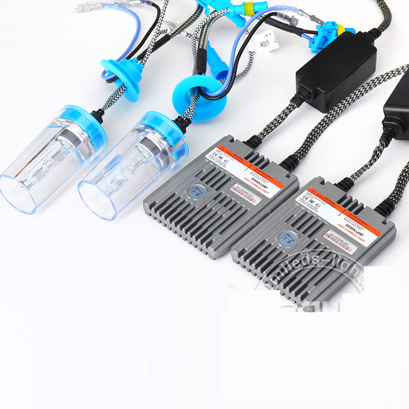

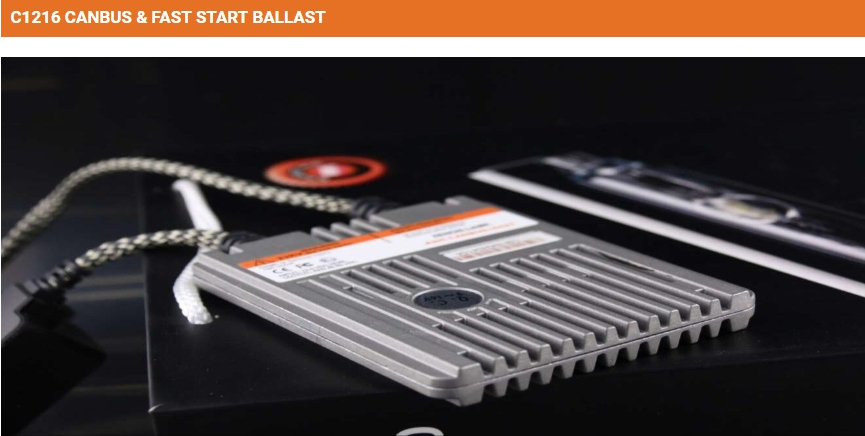

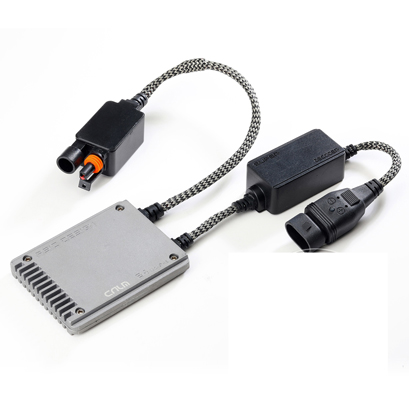

PRODUCT DISPLAY
PRODUCT DESCRIPTION
MORE FEATURES:

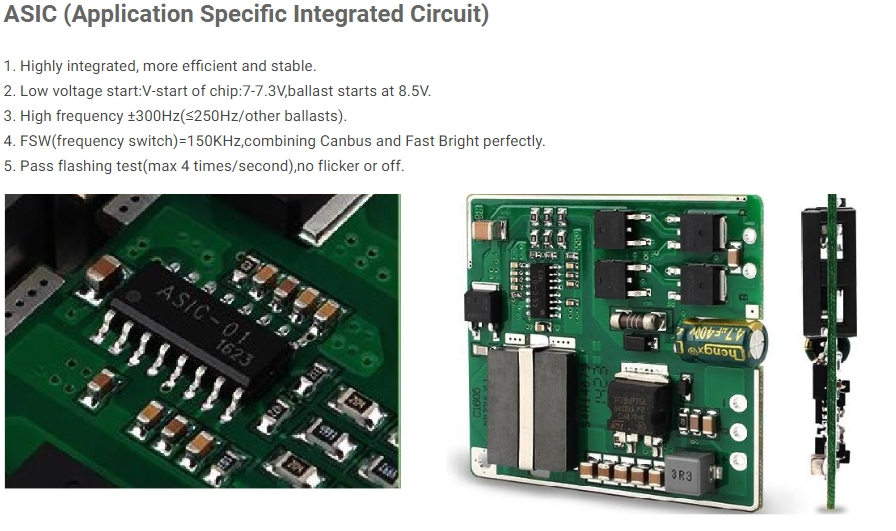

1. Main chip: ASIC, highly integrated, more efficient and stable
2. POWER-out(total): 55W±2W, perfectly match original 55W HID bulbs, POWER-out(effective): 42W±2W, work well
with 35W HID bulbs
3. Fast response: FSW(frequency switch)=150KHZ, strong I-start 5.5A&13.5V, C1216 combining CANBUS and FAST
BRIGHT together
4. Strong CANBUS: solve most BMW, BENZ, AUDI, VW etc,

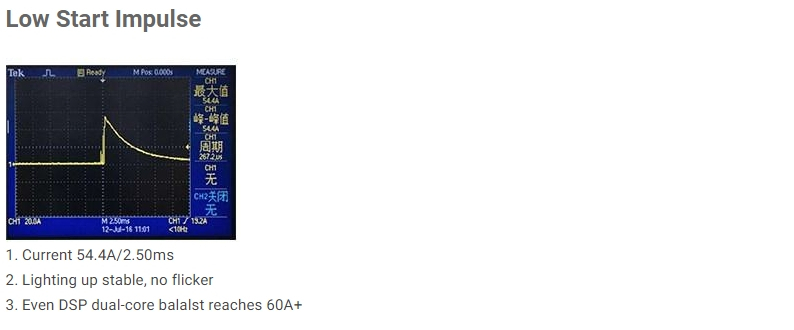

5. Low voltage start: light up at 8.5V, no flicker, remain lighting at 7.5V when driving.(other suppliers canbus ballasts can’t light up or flicker at such low start current, and flicker or light off at 7.5V when driving)

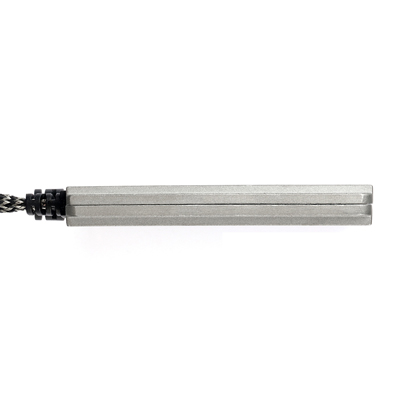

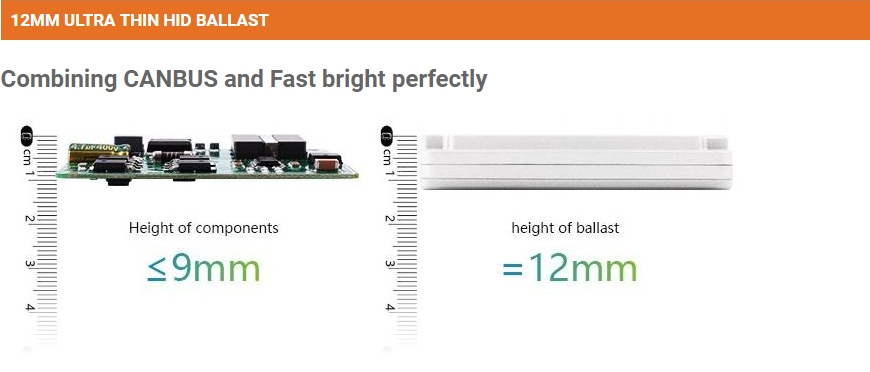

6. Ultra/super thin/slim design, heights of components≤9mm, height of ballast=12mm.
7. High frequency: ±300Hz(≥250Hz/other suppliers), stable, better protection for electrode of bulbs.
8. Few components: only 70+ pcs(>110pcs/other suppliers), more stable, reducing defective rates.

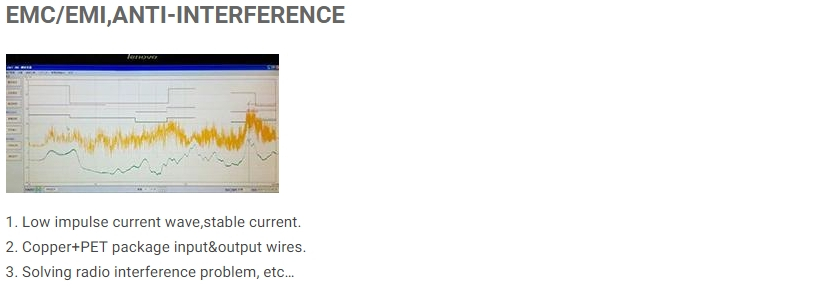

9. EMC/EMI: strong anti-interference, totally solving electric devices interference problems, such as audio- interference.

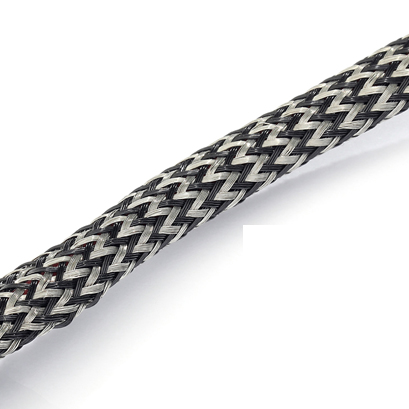

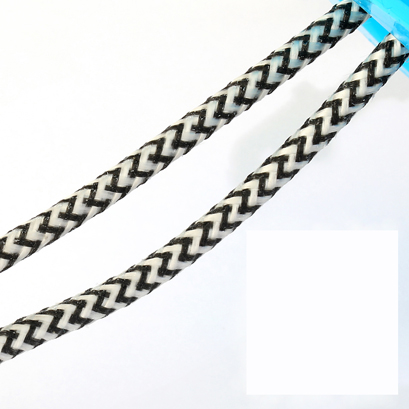

10. Copper+PET material package for input and output wires, high level quality, strong electromagnetic interference
shielding function.
11. All components are SMD types, lower defective rate, more stable, longer life span 5000+ hrs

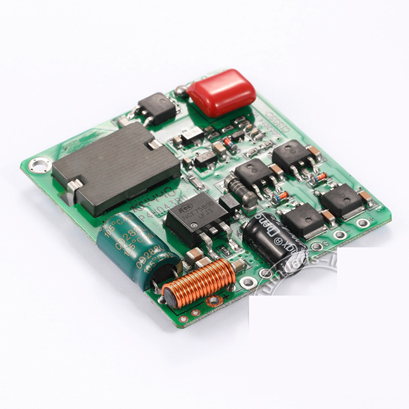

12. Components upgrade:
A. Input “filter inductor” changed into “shielded SMD inductor”.
B. “electrolytic capacitors” changed into “SMD ceramic capacitors”, longer life span(5000 hrs/electrolytic
capacitors, 30,000+ hrs/ceramic capacitors).
C. “polyester capacitors” changed into “SMD ceramic capacitors”, longer life span(20,000+ hrs/electrolytic
capacitors, 30,000+ hrs/ceramic capacitors)
D. Main chips “Dual-Core chips” changed into “ASIC chip”. Faster response, more stable, highly integrated.
E. MOSFET upgraded, the value of permissible voltage up 100V, internal resistance down 20%-30%.
13. More stable of fast start and light up, no flicker or shaking.
14. Strong self-adjustment function when starting, ensuring lighting up successfully at one time for all different brands and quality HID bulbs.
15. Supporting fast flashing test, max 4times/second, no lighting off when flashing test.

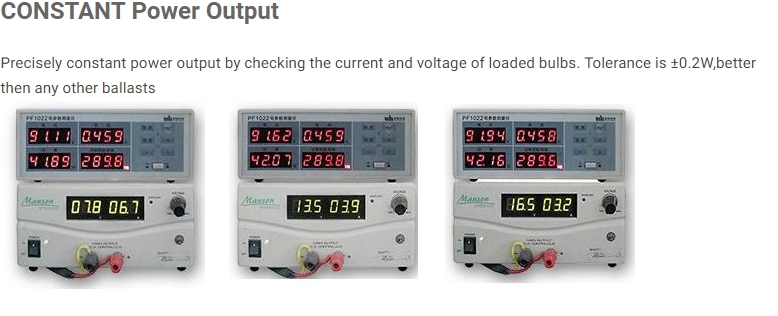

16. Precisely constant power output reaches ±0.2W, by checking the current and voltage of loaded bulbs.
17. Cold/Hot testing system, automatically controlling constant starting current according to different tubes’ temperature.
18. Strong self-protection function: lack voltage-input protection, over voltage-input protection, output open circuit
protection, short circuit protection, etc.
19. Ultimate temperature design: lighting up at one time at -40℃, working stably at +85℃.
20. Aging temperature: working temperature is 65-70℃(80℃+/other suppliers) at 30℃ ambient temperature
21. Heat dissipation: contacts matches well between inner cover and components, such as MOSFETs, main chips, etc.

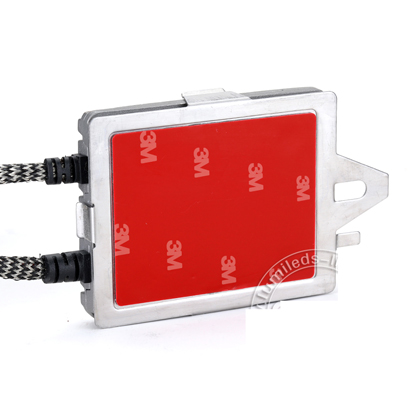

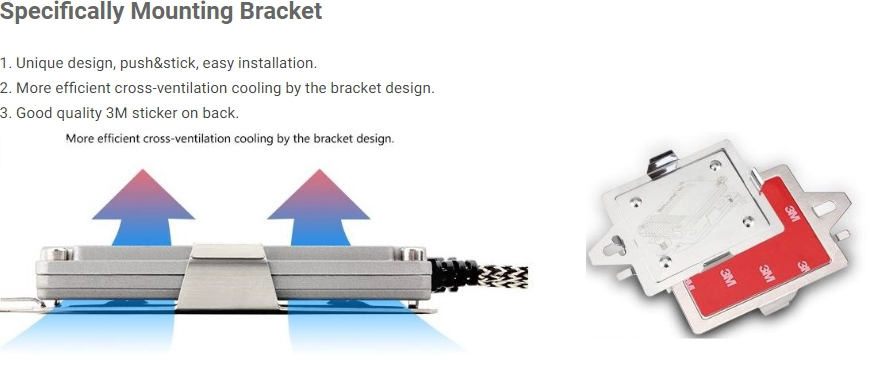

22. Bracket: special design, ventilative for better cooling down, easy installation by pushing in.
23. Ground connection design is safer.

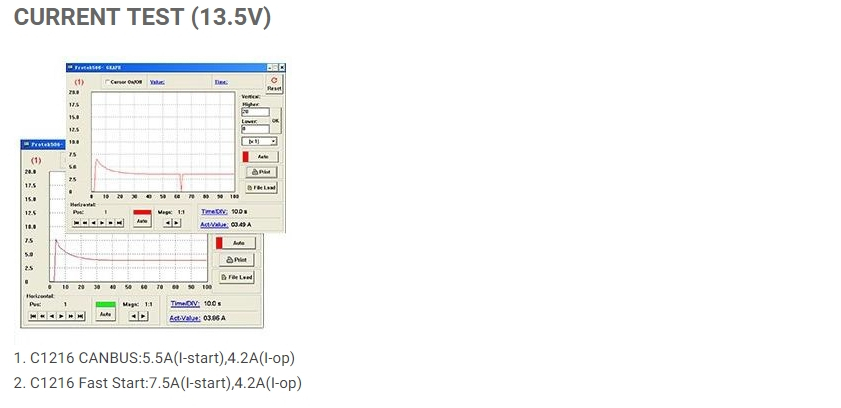

C1216 CANBUS+FAST BRIGHT:
1. I-start 5.5A, 50% bright/2second, 100% bright/5second,
2. Strong CANBUS function
C1216 FAST START

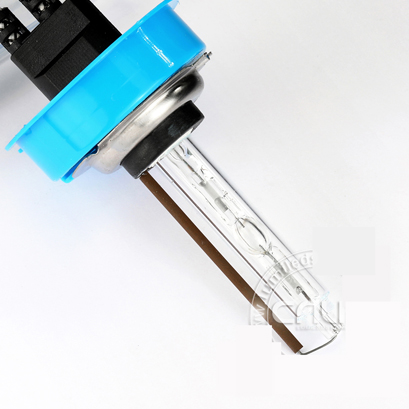

I-start 7.5A, 50% bright/1second, 100% bright/3second, pecfect performance if working with customized “YEAKY” bulbs or Cnlight which are specially made for our C1216 ballast.
FUNCTIONS
CANBUS: Super Strong canbus function
Pass Jeep Compass, Buick lacrosse 2012, Buick-Envision, KIA-K3(Those cars are very hard to pass, and many normal
Pass BMW E39, E46, E60, E90, E92, E93, F10, F11, F12, Mini, BMW 320LI, BMW X1
Pass AUDI A3, A4, A6
Pass VW Tiguan 2010, VW Sagitar 2014, VW-Laivda
Pass BENZ C-200 2010, VOLVO, DODGE, FORD focus-2013
